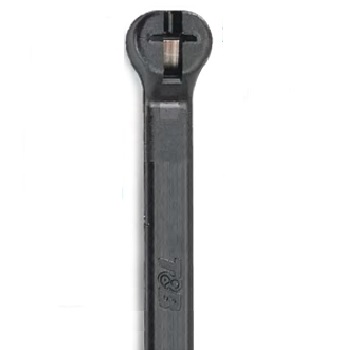

TY253MX ABB通贝耐候型尼龙线缆扎带 4.8×295mm
Catalog No. : TY253MX
Description: CABLE TIE 50LB 11.6IN UV BLACK NYLO
UPC: 786210715049
High Performance Cable Tie, Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, Black Color Nylon 6.6, Length of 294.64mm (11.6 Inches) for Bundle Diameter up to 78mm (3.07 Inches), Width of 4.83 mm (0.19 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 105 Degrees Celsius (221 F), Bulk Pack
-
Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
-
Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
-
The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
-
Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
-
Application Tools: ERG50, WT1-TB
Descriptors
|
Category
|
Cable ties
|
|
Special Features
|
Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
|
Specifications
|
Material
|
Nylon/Polyamide 6.6
|
|
Color
|
Black
|
|
Lock Mechanism
|
Stainless Steel Barb
|
|
Tensile Strength
|
50 pounds , 222 newtons
|
Classifications
|
Brand Name
|
Ty-Rap
|
|
Standard
|
UL E49405
UL E49405
|
Dimensions
|
Width
|
0.19 in , 4.9 mm
|
|
Length
|
11.6 in , 295 mm
|
|
Thickness
|
0.05 in , 1.3 mm
|
|
Bundle Diameter
|
0.12 to 3.07 in , 3 to 78 mm
|
|
