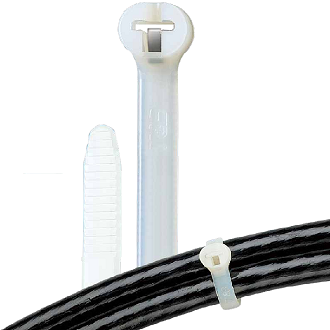

TY23M/TY523M ABB通贝原色尼龙线缆扎带 2.3*92mm
Catalog No. : TY23M
Description: CABLE TIE 18LB 4IN NATURAL NYLON
UPC: 786210824369
Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 92mm (3.6 Inches), Width of 2.3mm (0.09 Inches), Thickness of 1mm (0.04 Inch), Tensile Strength Rating of 80 Newtons (18 Pounds), Bulk Pack
Descriptors
|
Category
|
Cable ties
|
|
Special Features
|
Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
|
Specifications
|
Material
|
Nylon/Polyamide 6.6
|
|
Color
|
Natural
|
|
Lock Mechanism
|
Stainless Steel Barb
|
|
Tensile Strength
|
50 pounds , 222 newtons
|
Classifications
|
Brand Name
|
Ty-Rap
|
|
Standard
|
UL E49405, CSA 2884
UL E49405, CSA 2884
|
Dimensions
|
Width
|
0.19 in , 4.9 mm
|
|
Length
|
7.2 in , 183 mm
|
|
Thickness
|
0.05 in , 1.3 mm
|
|
Bundle Diameter
|
0.12 to 1.89 in , 3 to 48 mm
|
|
